Monday, August 31, 2009

Fretwork Doll Chair Scroll Saw Pattern

This little doll chair is 6" tall. The construction is slot and tab so it's easy to assemble. The chair is made from 1/4" wood so you can easily stack cut the two arm pieces and cut the project faster.

Contest Update:
The drawing is less than a week away so if you have not entered remember to go the contest area on the blog and sign up. There are only a few hundred entries so your odds are pretty good.

I have had a few readers outside the continental U.S. ask if they could enter the scroll saw giveaway contest if they provided a U.S. shipping address. That is fine. Just understand that the box is almost 50lbs.





The Scrollsaw Workshop is primarily supported by donations. If you enjoy this Blog and would like to make a donation please click this link. Your support is greatly appreciated.
Make A Donation

Sunday, August 30, 2009

B-24 Liberator Scroll Saw Pattern



The B-24 Liberator heavy bomber is often compared to the B-17 Flying Fortress. The B-24 was a more modern design with a higher top speed, greater range and a higher bomb load. Unfortunately she had a tendency to catch fire and sustain more damage during combat than the B-17. Even though her reputaions may not have been up to the B-17 she still carried out many important missions because of her long range and load capabilities.





The Scrollsaw Workshop is primarily supported by donations. If you enjoy this Blog and would like to make a donation please click this link. Your support is greatly appreciated.
Make A Donation

P-51 Mustang Scroll Saw Pattern


In my opinion the most beautiful airplane ever built. The P-51 Mustang was the best fighter of WWII. Generally used as bomber escort in Germany it was very capable of other missions as well. The P-51 also flew in the Korean war but was mostly limited to ground strikes after the introduction of jet fighters.






The Scrollsaw Workshop is primarily supported by donations. If you enjoy this Blog and would like to make a donation please click this link. Your support is greatly appreciated.
Make A Donation

Saturday, August 29, 2009

Pocket Watch and Holder Scroll Saw Pattern

You need a mini clock insert Woodcraft part #125116 and a pocket watch pull and chain kit. Woodcraft part #145955. You can find these online at Woodcraft.

Try to do a very nice sand job on the watch body. It needs to be rounded over to make it feel like a pocket watch.

It's best to use a 1 3/8" forstner bit to drill the hole for the clock insert and a 2 1/8" forstner bit for the holder. The holes will look much better than if you try to cut them on the scroll saw.

Pre-drill the hole for the watch pull. I used a 1/8" drill bit. Be careful when you screw in the pull so you don't split the watch body.

Note the angle of the watch holder. You can cut the angle or use a bench top power sander and sand it to the correct angle. That's how I did it. Either way works.

The pocket watch pull and chain kit cost $4.99 and the insert was 9.99. You can easily find the insert cheaper online. I think this would make a very nice gift for under $20 and they are easy to make. The only challenge is getting the watch body sanded evenly and rounded.

This has turned out to be one of my favorite projects. Easy to make, very little wood, cheap and it looks expensive. I'll be interested to hear what you guys think.



The Scrollsaw Workshop is primarily supported by donations. If you enjoy this Blog and would like to make a donation please click this link. Your support is greatly appreciated.
Make A Donation

Friday, August 28, 2009

Linked Bracelet Scroll Saw Pattern


I made the clasp by hand using jewelry wire. I will buy a nicer clasp for the finished project.

This is the cut link that has not been sanded to round over the ends. Also the brad pivot has not had the head cut off.

The link has been rounded over and the brad head cut off.

The bracelet is cut from a 10" x 3/4" x 1/4" thick maple. You will need to reduce the number of links to fit the persons wrist. 11 links fits an average size wrist.

I experimented with different ways to keep the brad in the holes. I think the best solution is to only drill part way through the links so the brad can only be inserted from one side. This means you only have to cap one side. To seal the open end mix some epoxy and saw dust. Use a tooth pick to put the mixture in the open hole. Cut the brad so it inserts in with about 1/8" for the mixture.

This project requires some precision. The holes need to be drilled very straight. A drill press and a fence makes this easier. You need to cut the lines close so you don't cut into the drill holes. Just take your time and it will go okay. You might need to practice on a couple blanks before you get the technique down. No big deal the blanks are very small so not much is lost but time.



The Scrollsaw Workshop is primarily supported by donations. If you enjoy this Blog and would like to make a donation please click this link. Your support is greatly appreciated.
Make A Donation

Wednesday, August 26, 2009

Band Clock Scroll Saw Pattern


I have made all kinds of sports patterns and even a cheer leading pattern but I have never designed a band pattern. Salute to the young men and women that put that groove in Friday night football.



The Scrollsaw Workshop is primarily supported by donations. If you enjoy this Blog and would like to make a donation please click this link. Your support is greatly appreciated.
Make A Donation

2009 Albury-Wodonga Scroll Saw Weekend


The 2009 Albury-Wodonga Scroll Saw weekend was another great success this year. Months of preparations paid off and everyone had a great weekend. Jutta Vyner was kind enough to write up a document showing all the great projects and merriment. Download Document . The document is a bit large so I have included a few pictures from the event below.



























Thanks to everyone who turned out to make the event such a success. A special thank you to Jutta for documenting the event.

The Scrollsaw Workshop is primarily supported by donations. If you enjoy this Blog and would like to make a donation please click this link. Your support is greatly appreciated.
Make A Donation

Busy, busy, busy. That's my story and I'm sticking to it.

I know it's difficult for the untrained eye to see but I am hard at work in this picture. You just can not imagine the mental exertion involved in running the Scrollsaw Workshop. I spend hours a day in this position thinking up new patterns. My wife says the amazing thing is how I can do all this work with my eyes closed. Folks I'm a trained professional and you should not try this at home. I spent two years studying with Himalayan monks to perfect this dangerous technique.

I just wanted everyone to understand the reason I am so far behind on returning my email. It should be clear by now that I just don't have enough hours in the day. Don't worry though because I have purchased a trained monkey. The seller assures me that the monkey can do as much work as me.

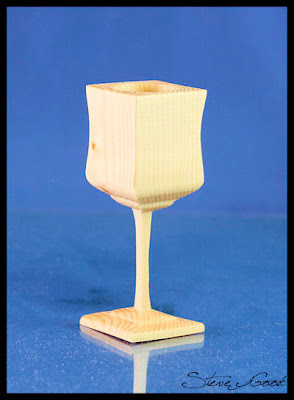

3D Goblet Scroll Saw Pattern


If you want to practice your 3D scroll saw cutting skills this pattern is for you. The pattern is easy to cut but you do need to be precise. The hole in the top needs to be drilled dead center and you need to follow the pattern lines close.

The blank needs to be 1 1/2" x 1 1/2". Use a 3/4" forstner bit to drill the top before you apply the pattern. Make sure you mark the depth of the hole so you don't go too far.

I used a small piece of construction grade 2x4 and ripped it to 1 1/2". I used a vice to hold the piece on my drill press and drilled the hole. I then applied the pattern and carefully cut side one. Flip the piece to side two and continue to cut out the pattern.

If you have never done any 3D cutting before I have a couple of videos in the video library that explain the technique and how to make a 3D cutting jig if you like. The videos are from several months back but are good reference material for this project.

3D cutting jig video.
Basic 3D cutting video Part 1.
Basic 3D cutting video Part 2.

Important. This piece is not heavy enough to handle a candle. It is for decoration only.


The Scrollsaw Workshop is primarily supported by donations. If you enjoy this Blog and would like to make a donation please click this link. Your support is greatly appreciated.
Make A Donation
